The intelligent CEON label sensor on the labeling head
When self-adhesive labels are applied automatically, paper or plastic materials are in use depending on the requirement. The range includes particularly thin, transparent or metallized labels.

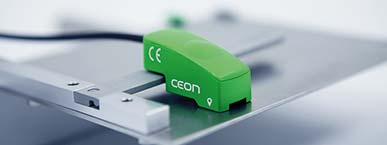

The intelligent CEON label sensor on the labeling head supports reliable identification and precise positioning of all conventional label materials.
Good reasons for choosing CEON label sensors by cab
- easy assembly directly on the peel-off plate
- detection of all label materials at any mesh width
- precise detection even at very high dispensing speeds up to 8,000 inch/min
- high repeat accuracy
- ManualTeach sensor balance independent from the system and AutoTeach function on the labeling head IXOR
- operating voltage 15 to 30 VDC
- push-pull output: PNP, NPN, 40 mA, short-circuit proof

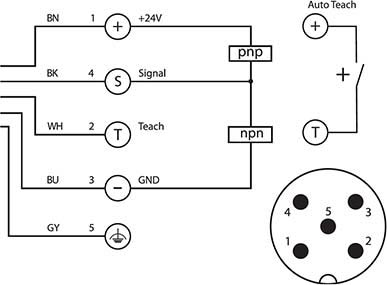

Pin assignment
M12 plug, 5 pin, a-coded
BN = brown
BK = black
BU = blue
WH = white
GY = grey
